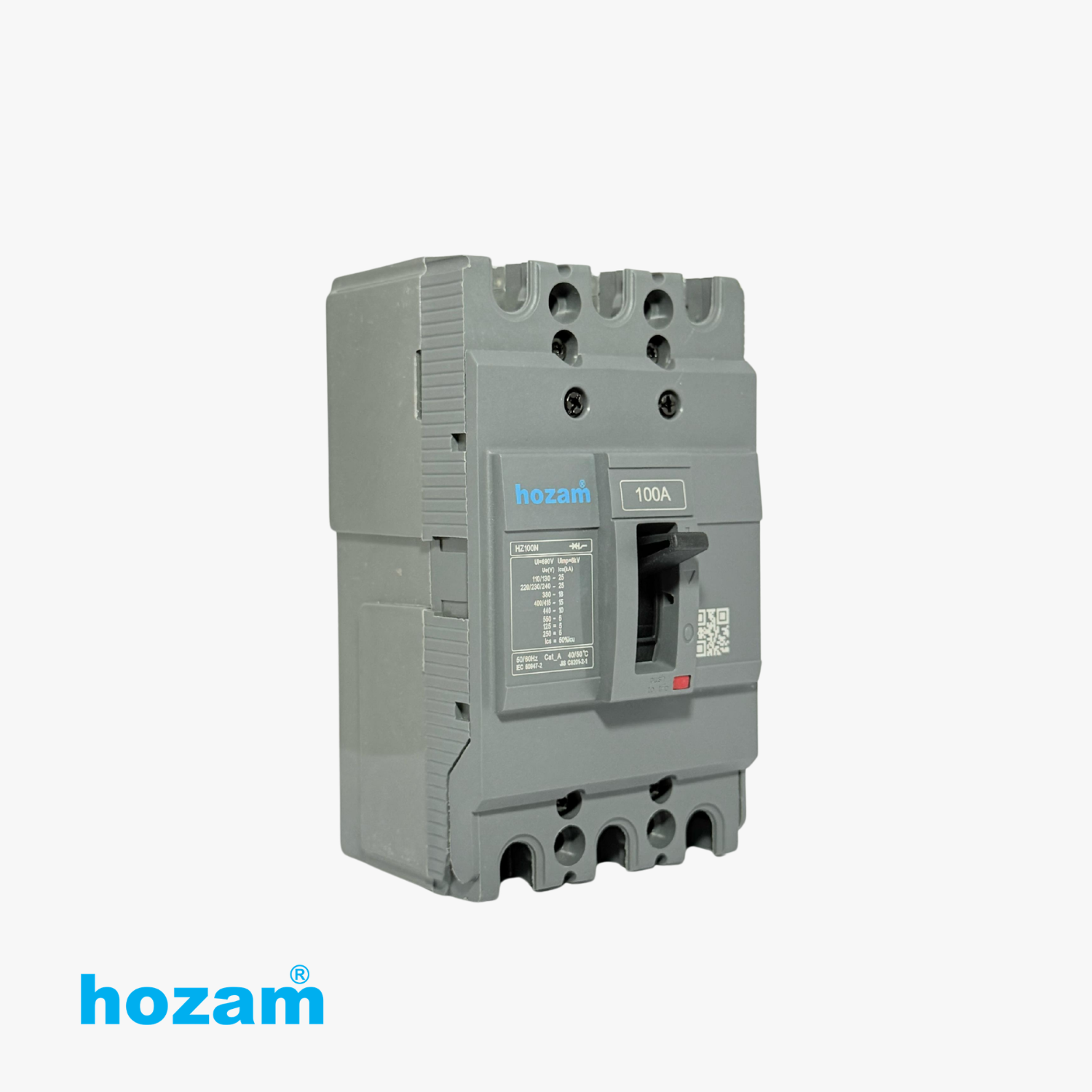

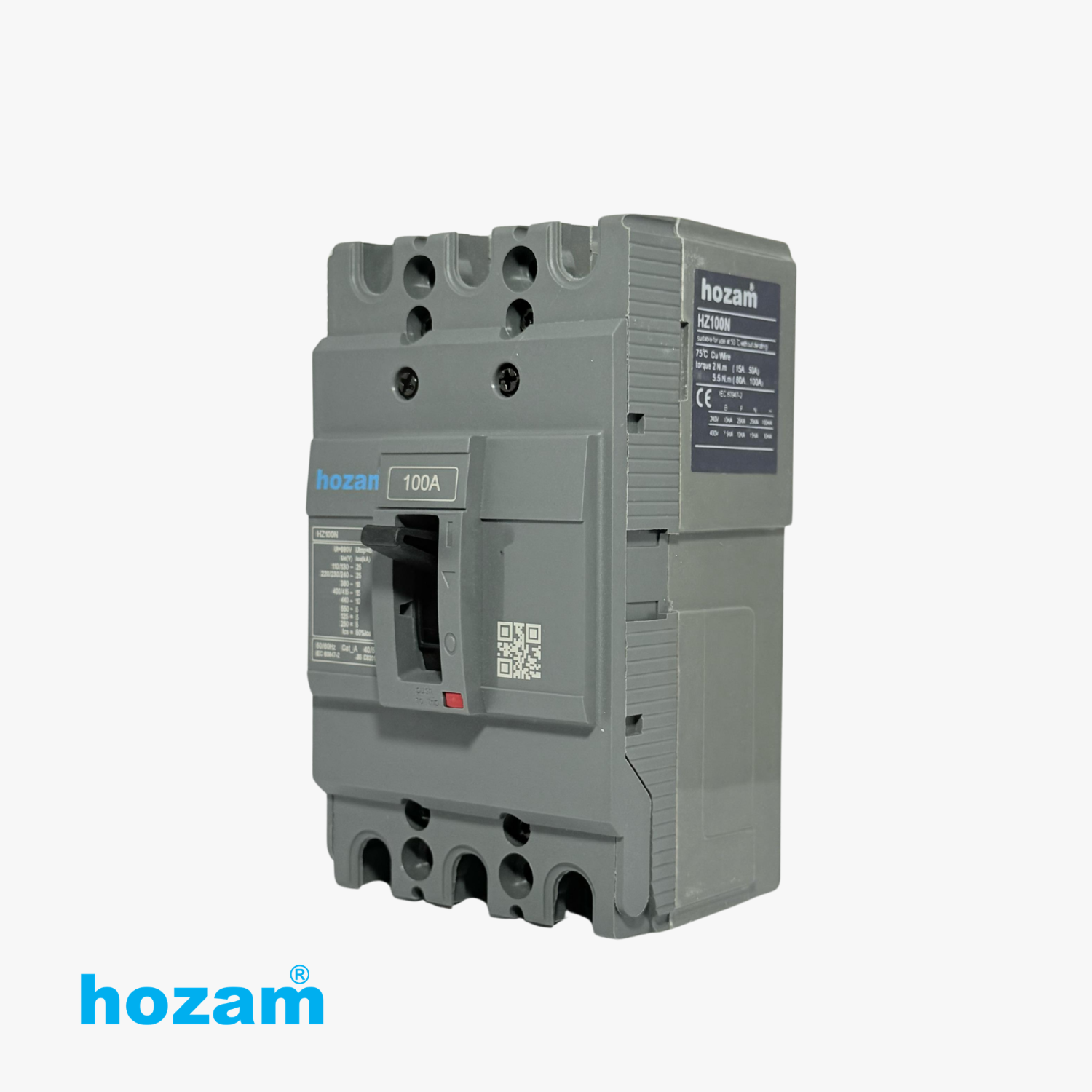

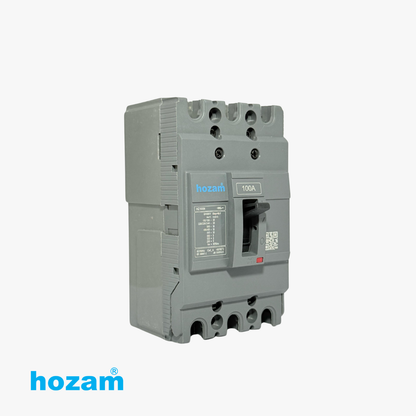

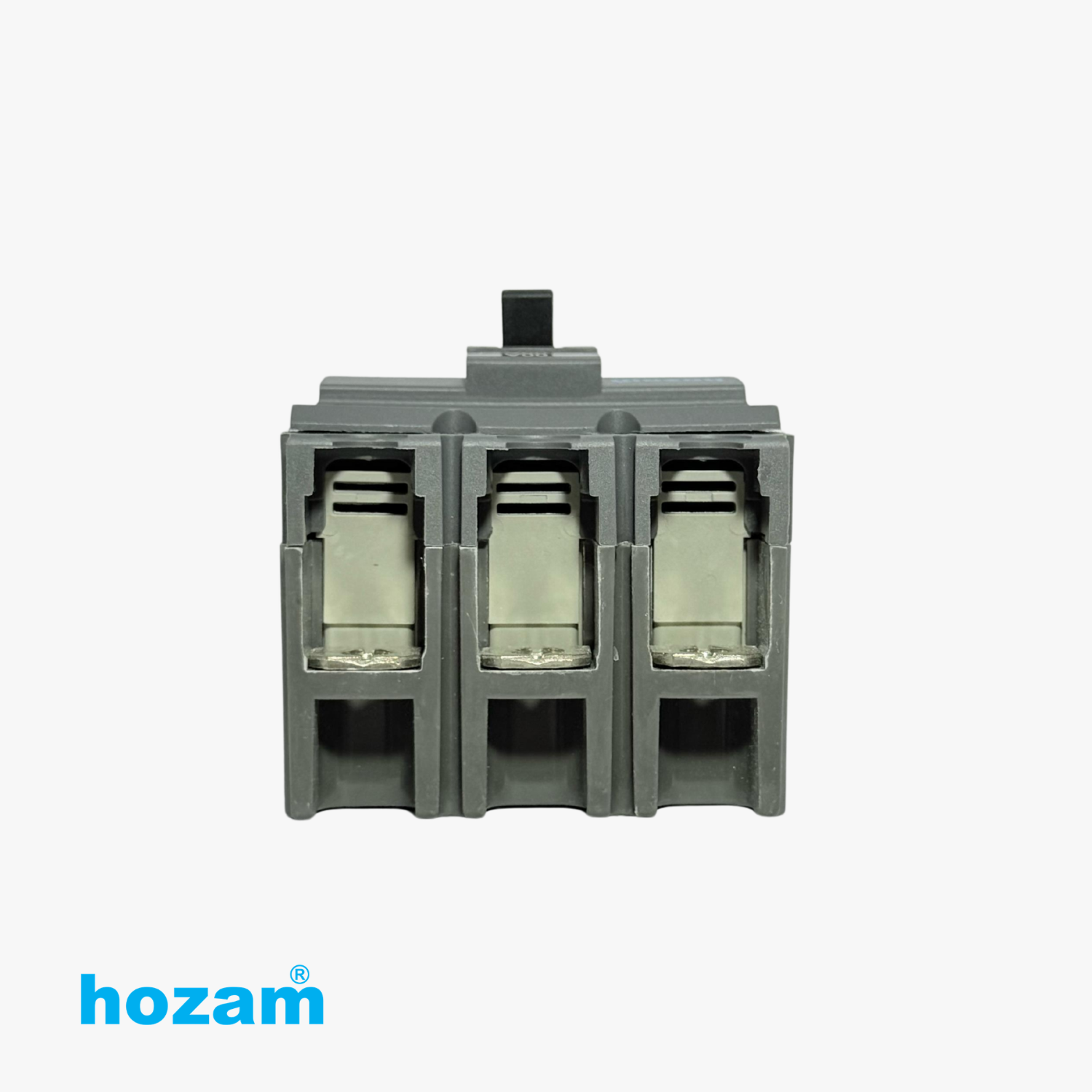

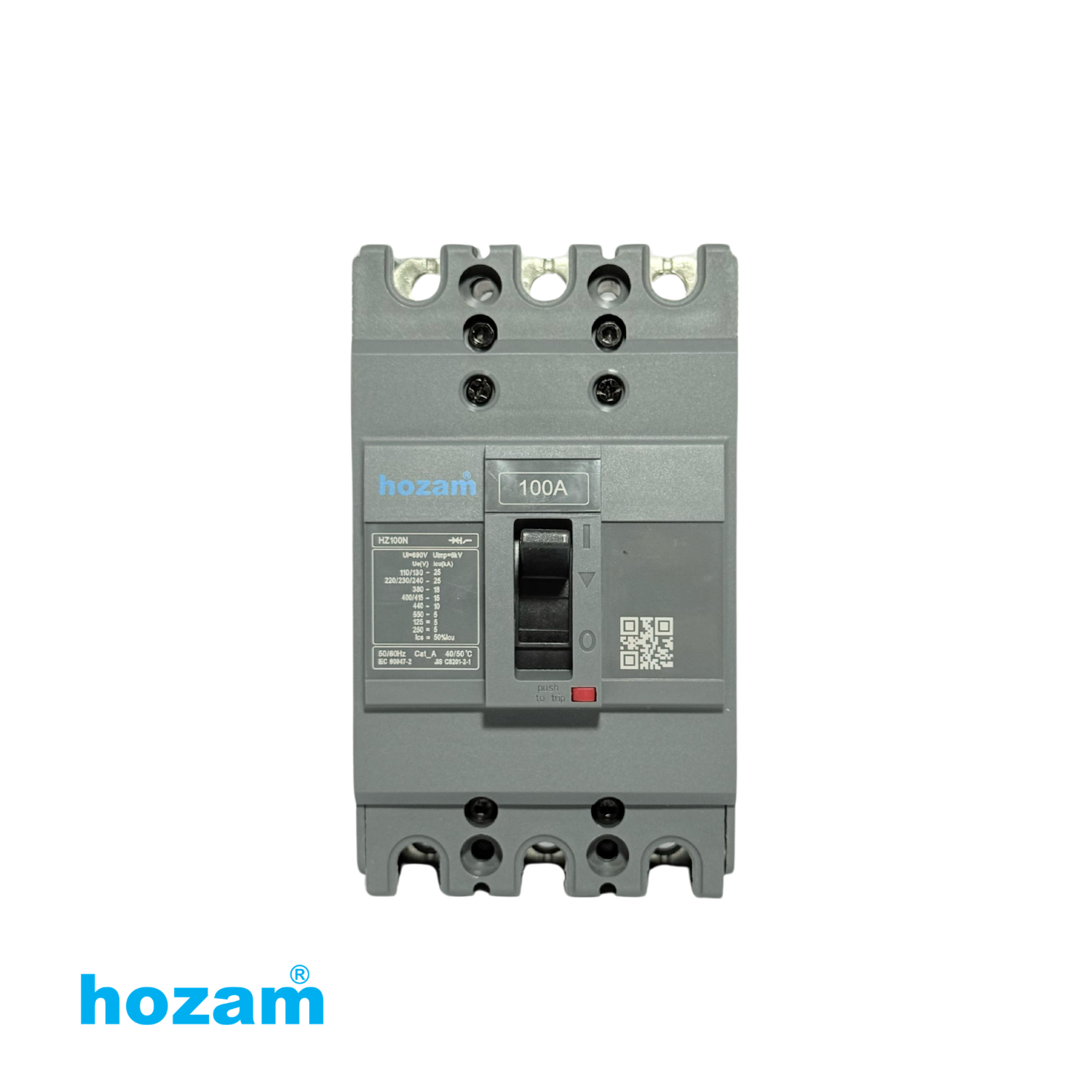

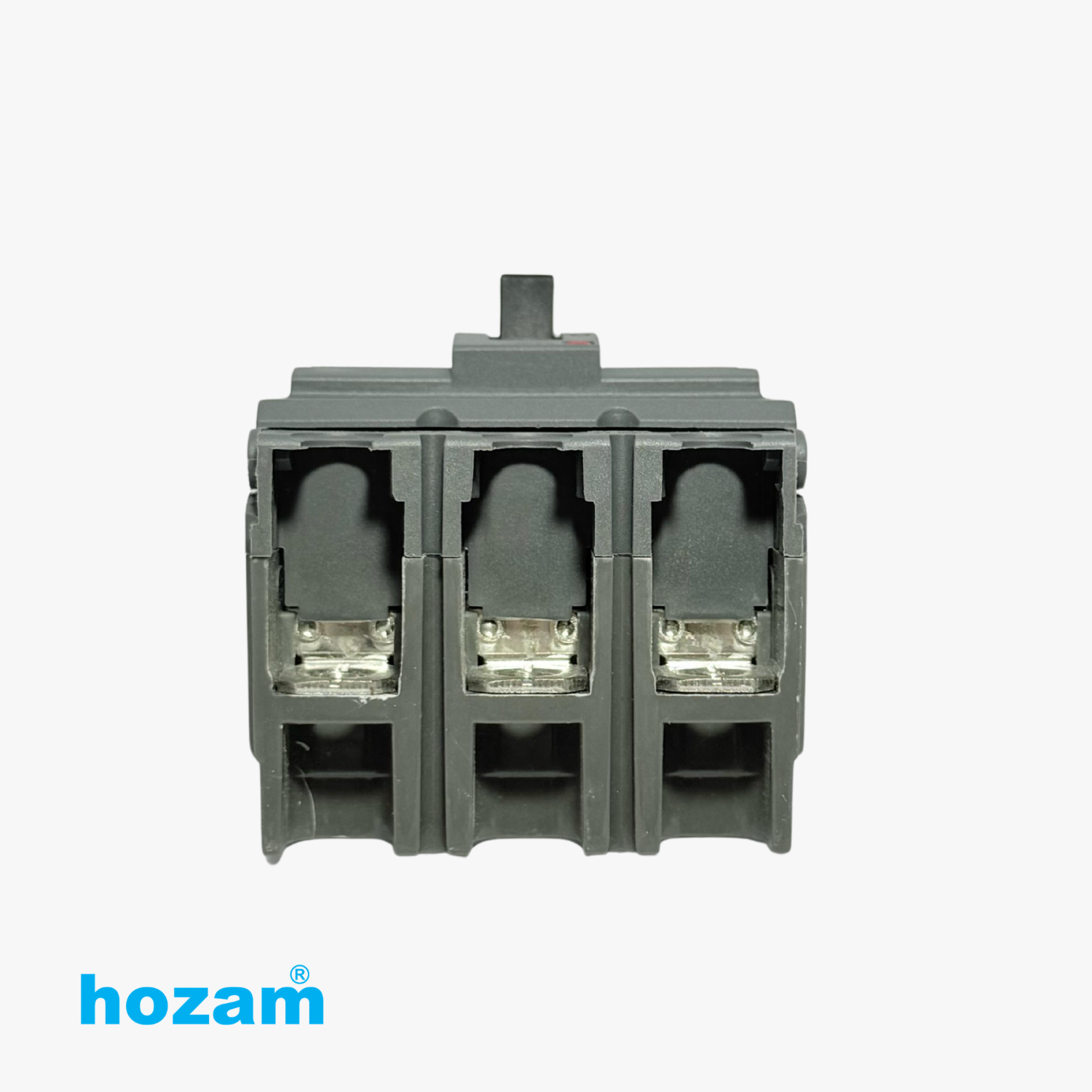

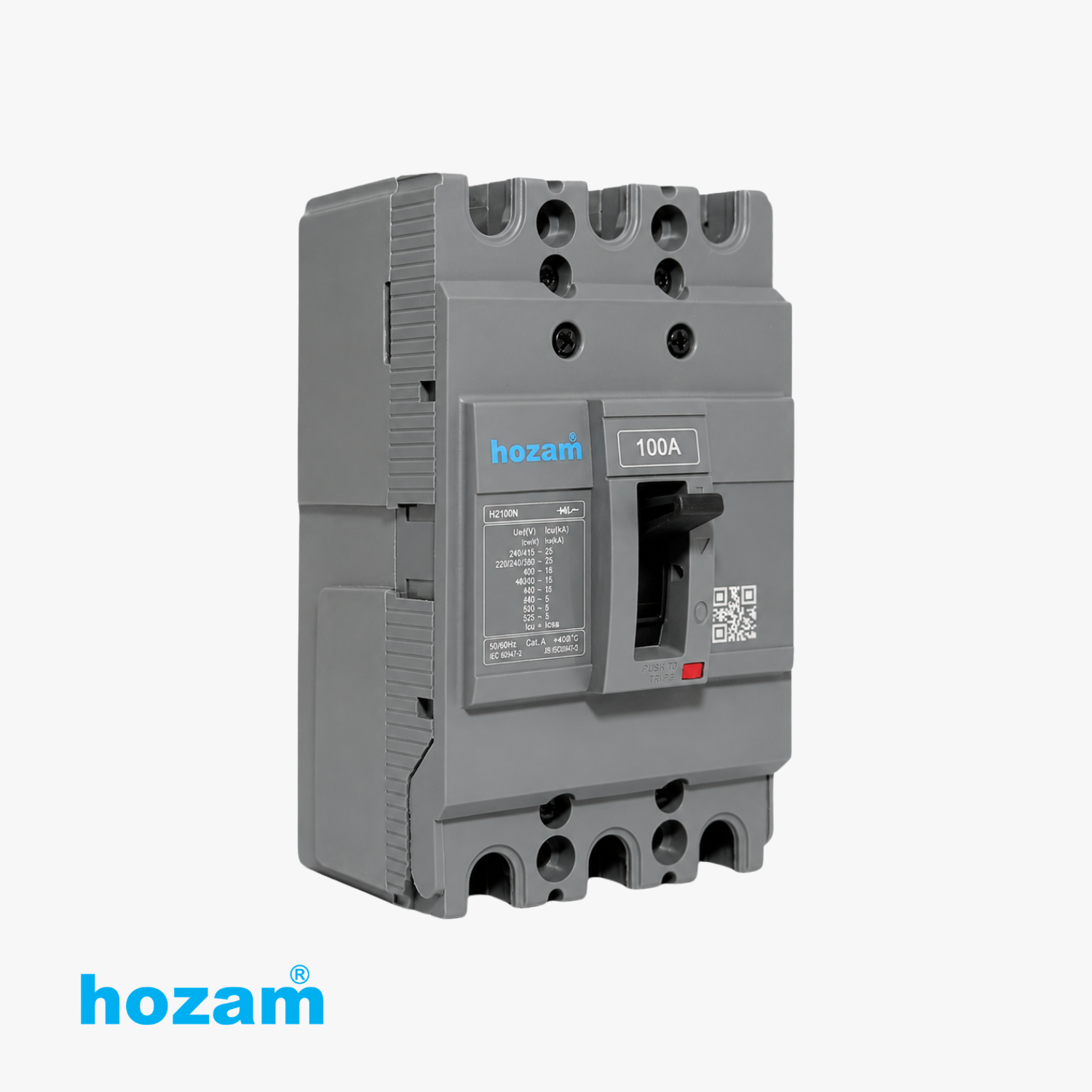

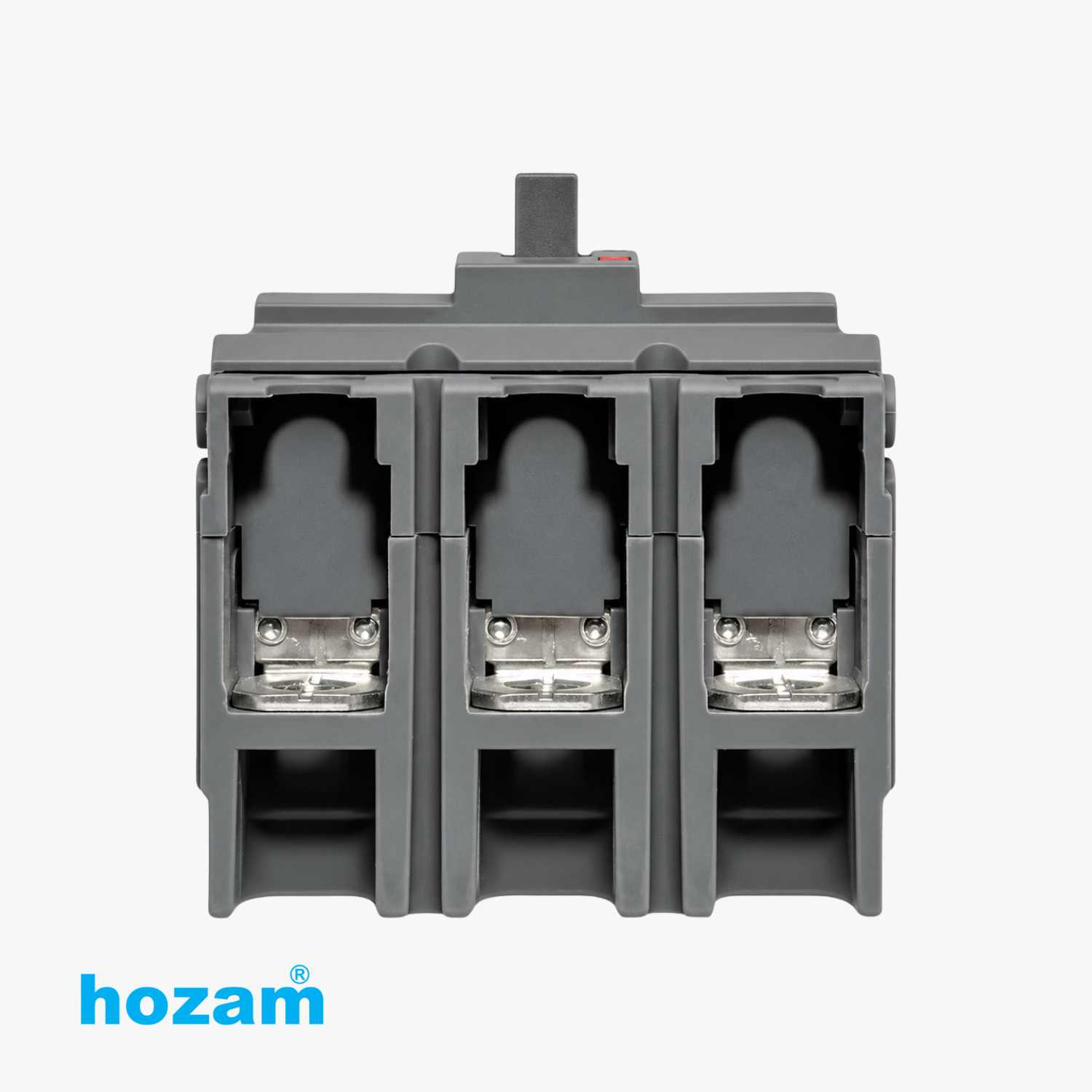

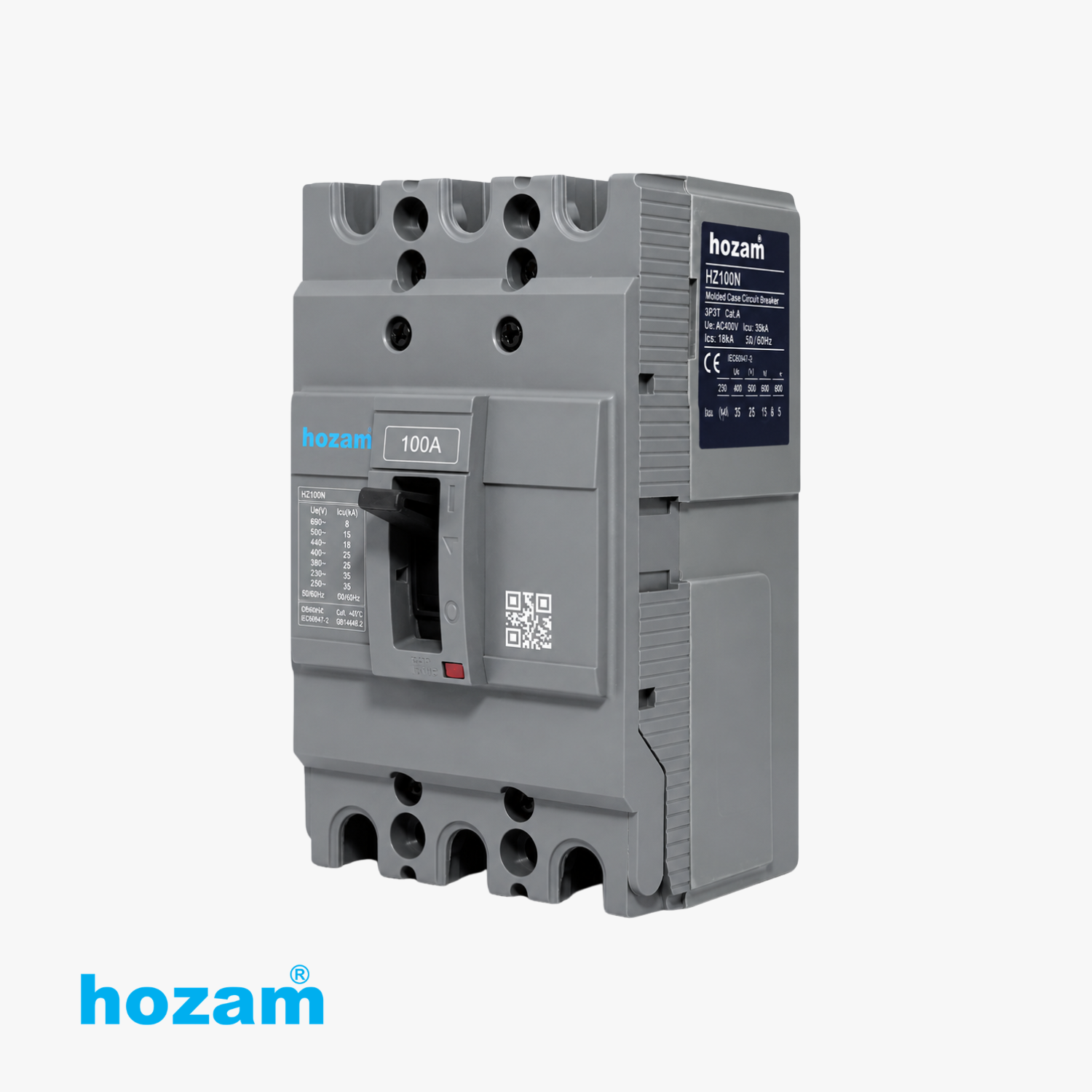

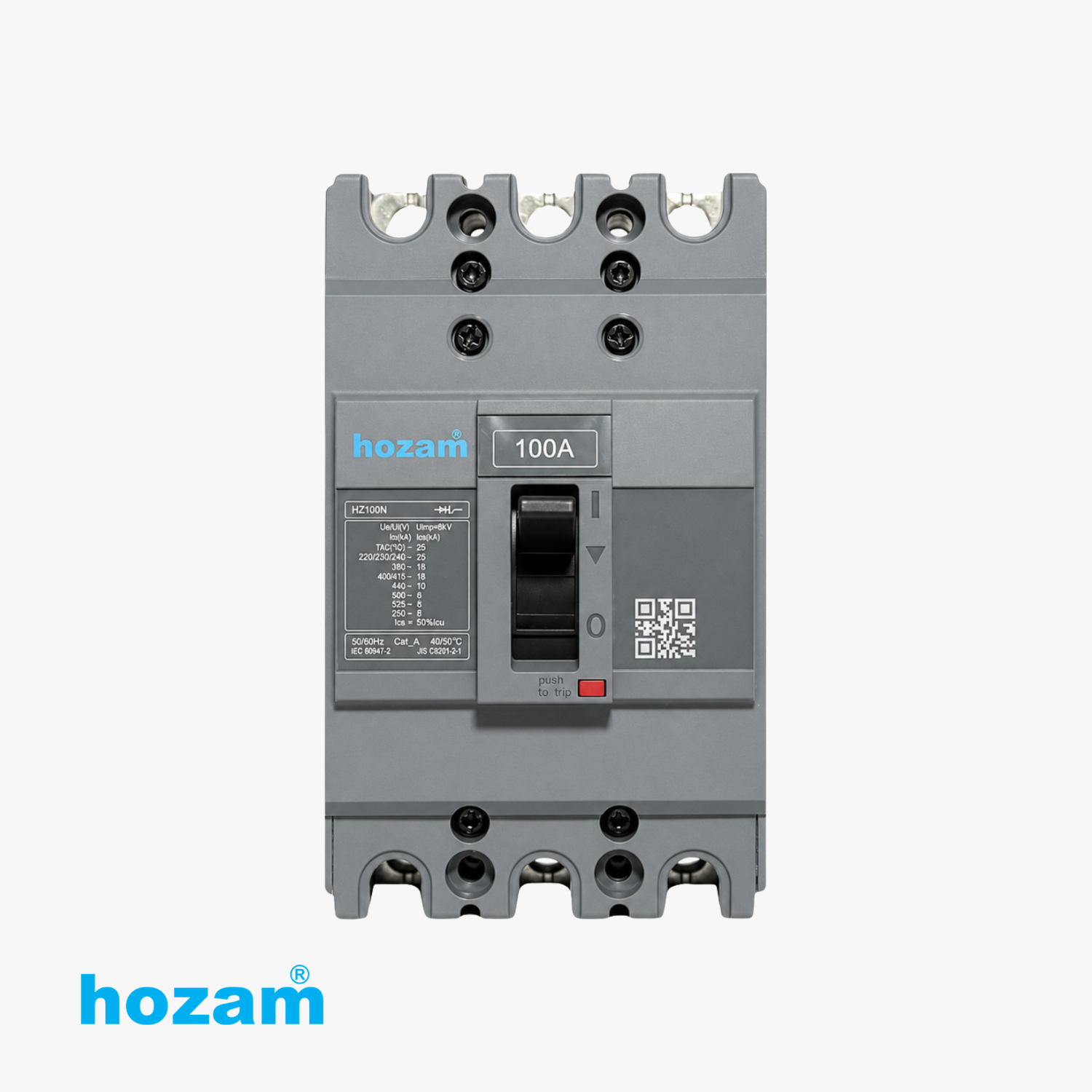

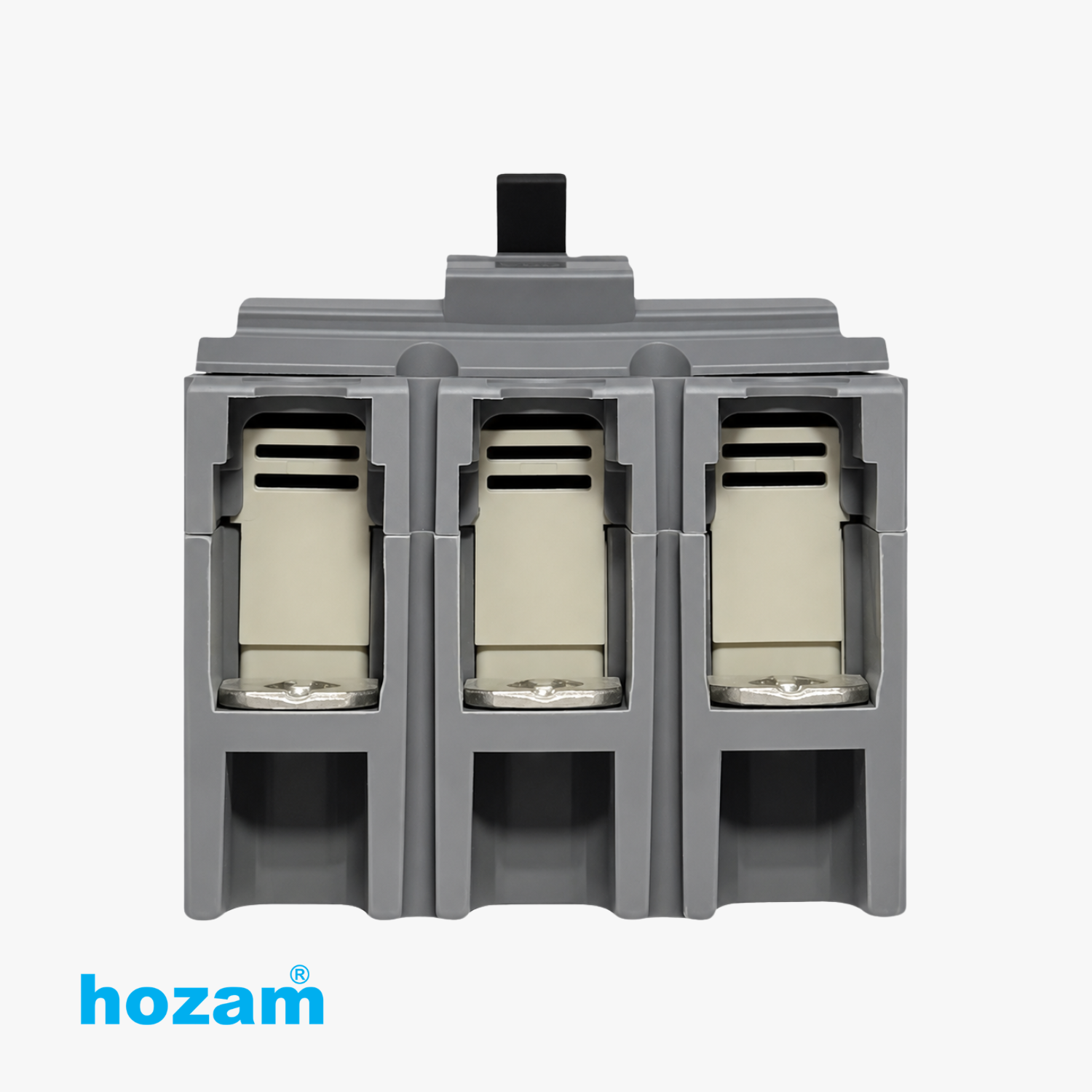

Hozam HZ100N 100A 3 Pole Molded Case Circuit Breaker (MCCB), 690V AC Thermal Magnetic Circuit Breaker for Industrial Power Distribution

The Hozam HZ100N 100A 3-Pole Molded Case Circuit Breaker (MCCB) is a premium-quality circuit protection device designed to safeguard electrical systems from overloads and short circuits. Built for industrial and commercial power distribution applications, this MCCB combines reliable thermal magnetic protection with a rugged molded case construction for long-lasting performance.

With a 100A rated current, 3-pole configuration, and 690V AC operating voltage, the HZ100N is suitable for electrical distribution panels, motor control centers, switchgear, generators, and industrial machinery. The integrated Push-to-Trip feature allows convenient testing and maintenance while ensuring enhanced operational safety

Rs.0.00

Out of stock

Technical Specificatios

BrandHozamModelHZ100NProduct TypeMolded Case Circuit Breaker (MCCB)Rated Current (In)100ANumber of Poles3 PoleRated Operational Voltage (Ue)Up to 690V ACRated Insulation Voltage (Ui)690VImpulse Withstand Voltage (Uimp)8kVFrequency50/60HzTrip UnitThermal MagneticBreaking Capacity25kA @ 220/230/240V, 18kA @ 380V, 15kA @ 400/415V, 10kA @ 440V, 5kA @ 550V, 3kA @ 690V, 50kA @ 125V DCMounting TypePanel MountedHousing MaterialFlame Retardant Engineering PlasticOperating Temperature40°C / 50°C ReferenceStandardIEC 60947-2

Best For

  • Industrial Electrical Panels
  • Commercial Power Distribution
  • Distribution Boards
  • Motor Control Centers (MCC)
  • Switchgear Assemblies
  • Generator Protection Systems
  • Factory Automation
  • Manufacturing Plants
  • HVAC Electrical Systems
  • Heavy-Duty Electrical Installations

Key features

Heavy-duty 3 Pole Molded Case Circuit Breaker (MCCB)
Rated Current: 100A
Operating Voltage up to 690V AC
Thermal Magnetic trip mechanism
Reliable overload and short-circuit protection
High interrupting capacity for industrial applications
Durable flame-retardant insulated housing
Manual ON/OFF operation with ergonomic handle
Push-to-Trip function for testing and maintenance
Compact design for easy panel installation
Long service life and stable performance
Manufactured to IEC safety standards

Package Includes

  • 1 × Hozam HZ100N 100A 3 Pole Molded Case Circuit Breaker (MCCB)
  • Protective Packaging
